Phased Array Portable Flaw Detector Ultrasonik TM-2108P merupakan sebuah langkah bertahap sebagai alat ukur inspeksi korosi kualitas material juga untuk pemeriksaan Lasan, pengukuran ketebalan, Deteksi cacat. Peralatan Phased Array Detector Ultrasonik TM-2108P mencangkup bidang pekerjaan seperti :
Teknik uji non-destruktif adalah semacam analisa yang dipergunakan dalam ilmu pengetahuan dan Industri untuk lebih rinci mengetahui sifat material, komponen atau sistem tanpa menimbulkan kerusakan dalam tiga tahap metode diterapkan yaitu periksa, inspeksi, kemudian mengevaluasinya. Uji NDT ini tidak mengubah artikel yang diperiksa sebuah teknik evaluasi produk yang amat penting efisiensi terhadap waktu dan biaya penelitian.
Alat ini banyak digunakan pengujian NDT untuk dalam rekayasa forensik , mekanik engineering , teknik perminyakan , teknik elektro , teknik sipil , rekayasa sistem , teknik penerbangan.

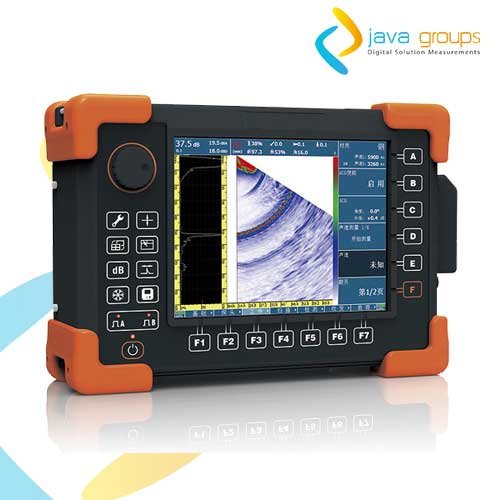

Phased Array Portable Flaw Detector Ultrasonik TM-2108P
Phased Array Portable Flaw Detector Ultrasonik TM-2108P merupakan sebuah langkah bertahap sebagai alat ukur inspeksi korosi kualitas material juga untuk pemeriksaan Lasan, pengukuran ketebalan, Deteksi cacat.
Phased Array Portable Flaw Detector Ultrasonik TM-2108P :
| Physical Parameters | |
| Display | 11 inch 800×600 color TFT |
| Probe Connector | I-PEX 160pin |
| I/O Port | USB 2.0（HOST） |
| HDMI | |
| LAN 100M | |
| Encoder Interface | |
| TTL input/ouput | |
| Memory | Capable：1GB + 4GB |
| External: USB | |
| Weight | 3kg(with Battery) |
| Dimension | 290mm×195mm×105mm |
| Mains | AC:100～240V 50Hz/60Hz |
| Power Charging | Carry-on Charging or Spare Charging |
| Battery Life | >7h |
| Power | 25W |
| Language | Chinese/English |
| Temperature characteristics | Suitable Operation Temperature -20 ℃ ～ 50 ℃ |
| Suitable Storage Temperature：-30℃～60℃ | |
| Protection Rating | IP53 |
| Pulser | |
| PRF | Highest 9600Hz |
| Voltage | adjustable bipolar square wave 40 ～100V , step 10V. |
| Width | 30～500ns, step 5ns |
| Damping | 50Ω |
| Delay Precision | 0～10us Precision:1ns |
| Receiver | |
| Bandwidth | 0.5～15MHz |
| Gain | 0.0～80.0dB |
| Receiving Delay | 0～10us Precision: 1ns |
| Filter | automatic adjustment |
| Rectification | positive, negative, full-wave, RF |
| Reject | 0～80% |
| Channels | 32:128 |
| Scan | |
| Type | linear scan, sector scan, C scan |
| Triggering | Time Base / encoder |
| Scan line | Maximum 128 lines |
| Scan angle | linear scan -45°ï½ž+45° |
| sector scan -80°ï½ž+80°Step 0.5° | |
| Calibration | |
| Automatic calibration | velocity, probe zeroing |
| Detection range | 0.0～1000mm (Longitudinal wave in steel) |
| Display delay | 1000mm |
| Unit | mmã€inch |
| Gate | |
| Gates used to measure | Aã€B |
| Boundry-purpose Gate | I（Optional) |
| Gate start | full range |
| Gate width | from the gate start to the full range |
| Threshold | 5～95% |
| Alarm | acoustic, optical |
| Referential cursor | Two cursors for measurement, measure the level, vertical position and the distance between the cursors. |
| measurement | |
| DAC | Up to 20 points, 40dB dynamic range |
| Measuring Mode | Front edge or Peak |
| Indication | Gate Indicators: Am & SP |
| Tri graphic analyses | |
| 0.5mm Measurement Resolution: 0.5mm | 0.5mm |
| Surface Correction | available |
| Auxiliary functions | on the basis of focal laws |
| Probe Auxiliary | |
| Packed-up | 4L16 4.0MHz16 ELE�.5mm |
| Optional | 5L64 5MHz64 ELE1.0mm |
| 2.5L16 2.5MHz16 ELE�.5mm | |
| 5L32 5.0MHz32 ELE�.5mm | |
| 2.5S32 2.5MHz32 ELE�.5mm | |
| 2.5L32 2.5MHz16 ELE1.0mm | |
| Scanners | |
| Model | SCQpa-1 |
| Measurement resolution | 0.5mm |
| Description | PA C-scan |
| Magnetic Power | |
